Dom > produkty > Azotowe suche pudełko > Nitrogen Dry Box Lab gas Cabinet Energy Saving with 4 Windows

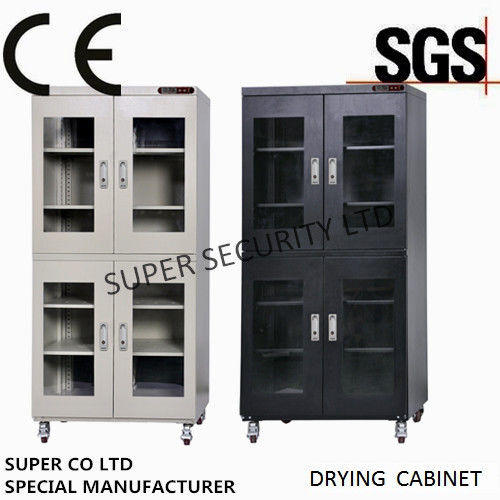

Nitrogen Dry Box Lab gas Cabinet Energy Saving with 4 Windows

Szczegóły Produktu

Place of Origin: CHINA

Nazwa handlowa: SSL

Orzecznictwo: ISO9001

Model Number: DCN8870L-4

Warunki płatności i wysyłki

Minimum Order Quantity: 5

Cena: Negotiation

Packaging Details: Standard Paper Box on the Plywood Pallet

Delivery Time: 7-10 Days

Payment Terms: T/T or L/C at sight

Supply Ability: 1500 per month

Uzyskaj najlepszą cenę
Atrakcja:

skrzynka kontrolna wilgotności

,

szafki do przechowywania azotu

,

szafka na gaz w pionie laboratoryjnym

Kolor:
Czarny czy biały
Materiał:
Metalowe lub Nierdzewne
Styl:
pionowy
Certyfikat:
CE i ISO
Kolor:
Czarny czy biały
Materiał:
Metalowe lub Nierdzewne
Styl:
pionowy
Certyfikat:
CE i ISO
Nitrogen Dry Box Lab gas Cabinet Energy Saving with 4 Windows

1436L N2 Nitrogen Dry Box Lab gas Cabinet Energy Saving with 4 Windows





Applications:


Auto Dry Cabinet, Dehumidifier, Dessicant Cabinet, Dry Storage Cabinet
Desiccant Dehumidifier, desiccant dry cabinet , lab cabinet,  drying oven , industrial dehumidiffier , storage cabinet ,stainless steel Cabinet , nitrogen gas cabinet , dry cabinet , moisture proof cabinet [54] ,Humidity Control Chamber, Dry Box  , Desiccator Cabinet , DEHUMIDIFIER  , N2 CABINETS ,  DRY CABINETS

Its typical applications include the prevention and protection against all types of oxidation (rust), the prevention of the growth of fungus on optics, the dry preservation of lab materials and samples as well as the protection of MSDs (moisture sensitive devices) as per IPC/JEDEC J-STD-033 within the electronics industry.
Suitable for storing: Semiconductors, Electronics Parts and Precision Instrument and Parts Field: Semiconductors, IC packages, Mesuring tools,Electronic component,such as IC,BGA,etc.
It can prevent them from oxygen and mildew, which are widely used in laboratory, electronic industry, hospital, research department.



Specifications:



N2 gas Cabinet-Double Door Type

Cabinets suitable for processing and storage of electronic components.

Humidity range:1% ~ 60% RH

Model :DCN8870L

Outside:1895*900*600(H*W*D)MM

Inside:1700*898*572(H*W*D)MM

Sheet:5pcs,Each with 80kg loading

Power:85V-265V,50HZ/60HZ

Weight: 108kg Capacity:1436L

LED Display:yes(Honeywell)

Remarks:
All models can be chosed stainless material.
With casters on the base
Can choose Anti-ESD dark green color.
Customized size accepted





Nitrogen Dry Box Lab gas Cabinet Energy Saving with 4 Windows 0Nitrogen Dry Box Lab gas Cabinet Energy Saving with 4 Windows 1



ELECTRONIC COMPONENT USE

Features:

1)Humudity adjustable, energy saving design digital LED-Honeywell display and control, all the setting can be justified at the touch of the UP and DOWN bottom.

2)1.0mm thickness steel body, rustproof paint, 3.2mm toughened glass, import sensor.

3)Moisture absorbs continuously with sustention for 24hours

   Cost lowering through nitrogen (N2) gas replacement and combination N2 with other substance.

4)Zinc alloy lock with plus pressure capability. Strong, rusty proof stainless 304 material. On the base truckle with brake .

5)Slip layer board make the inter space adjustable.

6)Energy saving design: low electricity consumption resuegence, no heating, no condensation Dripping, absence of fan noise.



Digital Temp Display &  RH Control
Nitrogen Dry Box Lab gas Cabinet Energy Saving with 4 Windows 2                    Powder supply direct connection
                    No need of battery
Digital LED-Honeywell display and control, with UP and DOWN bottom.

Competitive Advantage:
Energy saving design: low electricity consumption resuegence, no heating, no condensation Dripping, absence of fan noise

Any size and spec are available for our customized Auto Nitrogen Gas Cabinet
For storing and keeping moisture sensitive device (MSD) and oxygen sensitive device (OSD)
Fast dehumidifying speed, the humidity of inner cabinet can drop down under 10%RH in several minutes

Using micro-controller unit (MCU) to acquire digital data and real time control the nitrogen gas supply. When the humidity is below the set point value, the system will switch off the nitrogen gas supply. Once the humidity is higher than the set point value, the system will switch on the nitrogen gas supply. It will economize nitrogen gas.





Model Door type Overall Size H×W×D(mm) Interior size H×W×D(mm) Sheet Capacity(L) Voltage N.W.
(KG)
DCN898LS 1,manual 688×448×400 598×446×372 1 98 85V-265V
50Hz/60Hz
20
DCN8160LS 1,manual 1010×448×450 848×446×422 3 160 85V-265V
50Hz/60Hz
31
DCN8240LS 1,manual 1310×598×400 1148×596×372 3 240 85V-265V
50Hz/60Hz
43
DCN8540LS 1,manual 1465×598×710 1298×596×682 3 540 85V-265V
50Hz/60Hz
70
DCN8718LS 1,manual 1910×598×710 1723×596×682 5 718 85V-265V
50HZ/60HZ
85
DCN8320LS 2,manual 1010×900×450 848×898×422 3 320 85V-265V
50HZ/60HZ
54
DCN8435LS 2,manual 1010×900×600 848×898×572 3 435 85V-265V
50HZ/60HZ
60
DCN8870LS 2,manual 1890×900×600 1700×898×572 3 870 85V-265V
50HZ/60HZ
106
DCN81400L-6S 6,manual 1910×1200×710 1723×596×682 5 1436 85V-265V
50HZ/60HZ
147
DCN81400L-4S 4,manual 1910×1200×710 1723×596×682 5 1436 85V-265V
50HZ/60HZ
147
