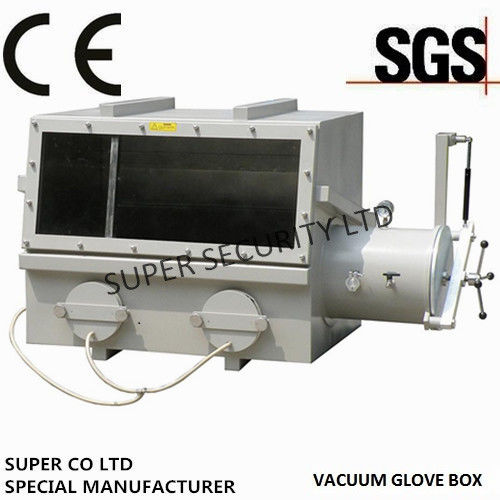

Vacuum Laboratory Glove Box PLC control for Universal Testing

Vacuum Laboratory Glove Box PLC control for Universal Testing

    • Vacuum Laboratory Glove Box PLC control for Universal Testing
    • Vacuum Laboratory Glove Box PLC control for Universal Testing
    • Vacuum Laboratory Glove Box PLC control for Universal Testing
    • Vacuum Laboratory Glove Box PLC control for Universal Testing
    • Vacuum Laboratory Glove Box PLC control for Universal Testing
  • Vacuum Laboratory Glove Box PLC control for Universal Testing

    Szczegóły Produktu:

    Place of Origin: CHINA
    Nazwa handlowa: SOPERSL
    Orzecznictwo: CE.SGS.ISO
    Model Number: VGB600S

    Zapłata:

    Minimum Order Quantity: 2
    Cena: USD300-USD10000
    Packaging Details: CRATE PACKAGE
    Delivery Time: 5-10 WORKING DAYS FOR LCL
    Payment Terms: D/P, Western Union
    Supply Ability: 3000PCS/MONTH
    Skontaktuj się teraz
    Szczegółowy opis produktu
    COLOR: WHITE, ORIGINAL MATERIAL: SS304
    POWER: ELECTRONIC Name: SUS Vacuum glove box
    Usage: Universal Testing Machine Glove Box Chamber: 600mm(W) x 450mm(D) x 420mm(H)
    High Light:

    Vacuum Glove Box

    ,

    sterile glove box

    Vacuum Laboratory Glove Box PLC control for Universal Testing



    • Instroduction

    VGB600S is a  stainless steel glove box with Airlock Chamber, Gauges andvacuum Flanges, which allow glove box operate under vacuum to remove moisture and oxygen without expensive inert gas purging.



    • Application:

    1. MOCVD technology in the semiconductor industry. vcuum glove box

    2. Special lamps (HID) development and production.vacuum glove box

    3. Microelectronics, laser and plasma welding.vacuum glove box

    4. OLED / PLED development and production.vacuum glove box

    5. The development and production of lithium-ion batteries.vacuum glove box

    6. Inorganic / Organic Chemistry Research.vacuum glove box

    7. Metal halide / metal powder / ceramic powder research.vacuum glove box

    8. Nanotechnology research materials.vacuum glove box

    9. Catalyst.





    Advantages:



    Siemens PLC control system  with 6" touch screen display: easy to access all functions

    Recirculation system: closed loop gas circulation, oil free and vacuum tight

    Automatically pressure control: working pressure can be set in the range of +/-12mbar

    Automatically purging: easy to operate and save gas, as well safe for operating solvent.

    Equipped with 9 3/ 4"butyl gloves for immediate use

    Foot switch: box pressure can be regulated via foots witch

    Easy to access to gloves

    Data memo: automatically log system’s data

    Warranty:One Year limited warranty with lifetime support Rusting and damage due to improper storage condition or maintenance is not covered by w arranty







    Glove Box Chamber


    ·Case Material: Made of 11 gauge (3mm thickness) 304 stainless steel sheet   which provide heavy duty structure for vacuum

    ·Dimensions: 600mm(W) x 450mm(D) x 420mm(H)

    ·Max. Positive Pressure: 810 Torr (1.1 atm)

     Note: Gloves cannot work if pressure is higher than 810 Torr

    ·Max. Vacuum Level: 0.5 Torr

     Note: Stainless Steel case may deform at higher vacuum level

    Air-lock Chamber

    with Air lift

    ·Dimensions: 210mm(ID) x 260mm(D)

    ·Max. Vacuum Level: 0.05 Torr

    Transparent Front Panel

    ·Dimension: 500mm(W) x 165mm(H)

    ·Removable for putting in devices

    Leakage Rate

    in Glove Box Chamber

    < 3 Torr/hour

    Power Extension

    ·One extension socket (Max power 1500W) is installed in the glove box main  chamber.

    Gloves

    ·Glove Port size: 190mm

    ·Included (with increased stretching, bending ability and tear strength,

    and offer strong resistance to aromatics, hydrocarbons, solvents, fats, and acids)

    ·Clamps and sealing flanges included

    Vacuum pump

    and fittings (Optional)

    Vacuum pump and fittings are not included.

    Application Notes

    ·Always check the joints, gloves, sealing elements, and pipelines for air-tightness  before and during the operation

    ·Corrosive gases are prohibited as they will damage the sensors

    ·The inlet and outlet of the Air-lock Chamber must not be opened at the same time  to prevent contamination by the external gas

    ·By closing the vacuum flange, the glove box can be vacuumed by mechanical  pump up to 0.5 torr before filling inert gas,  (moisture can be below 180 ppm and oxygen below 200 ppm).  Then you can save at least 1-2 tank of inert gas from purging at each operation





    Vacuum Laboratory Glove Box PLC control for Universal TestingVacuum Laboratory Glove Box PLC control for Universal Testing

    Vacuum Laboratory Glove Box PLC control for Universal Testing



    STANDARD PACKAGE:



    No

    Description

    Qty.

    1

    VGB-600S SS Glove box

    1 unit

    2

    Power cable

    1 pair

    3

    Gloves (spare use)

    2 pcs

    4

    Vacuum rubber hose

    1 pcs

    5

    Sealing gasket of glove port (spare use)

    3 pcs

    6

    Sealing gasket of glove box door (spare use)

    2 pcs

    7

    Vacuum grease

    1 box

    8

    Glove clamps

    3 pcs

    9

    Hose clamps

    1 pack

    10

    Polyurethane tube

    1 pc

    11

    User’s manual CD

    1 pc
